EPS Shape Molding Machine

DONGSHEN: Your Professional EPS Shape Molding Machine Supplier

Hangzhou Dongshen Machinery Engineering Co.,Ltd is a company specially dealing with EPS machines, molds and spare parts. Having strong technical team, we help clients to design their new factory and supply whole turn-key project to them, also we help old EPS factories to improve their production by reducing energy consumption and increasing production capacity. Apart from that, we offer the service of designing special EPS machines as per clients request. We also customize EPS moulds for other brand EPS machines from Germany, Korea, Japan, Jordan etc. We warmly welcome you to wholesale high quality EPS machine at competitive price from our factory. Contact us for quotation.

Why Choose Us

Variety of Advanced Products
We mainly manufacture and supply all kinds of EPS machines like EPS Pre-expanders, EPS Shape Molding Machines, EPS Block Molding Machines, GNC Cutting Machines etc. Adopting the most advanced technology and equipment, our EPS machines have efficient production capacity and stable product quality. We have hundreds of different models of machines for you to choose from, as a result, you can easily find the equipment you need.

One-Stop Services
We mainly have 3 different sale services. As for pre-sale, we can help customer to design new factory and machine layout drawing. In sale, we will care of the machining process and react to the customer, will make marks and provide materials if customer will setting the machines themselves. And after sales service, we will provide the machine use specification and send engineer to help setting the whole production line. Besides, we are committed to solve problems for customers at any time. Our production team is constantly accumulating experience and improving our products to better meet customers' needs.

Rich Experience and Professional Team
DongShen factories cover 15000 square meters and have more than 20 years of experience in industry and have rich experience on research and manufacture the high-quality products. We're well-known as one of the leading EPS machine manufacturers and suppliers in China. Now, we have more than 50 professional staff, including excellent designers and senior technical personnel.

Wide Market
DongShen adheres to the path of independent brand development, with our products sold in over 50 countries and regions worldwide. We have always maintained friendly and close contact with our partners, such as, we have machines in America, Romania, Ukrain, Uzbekstan, Mexico, Malta, Russia, Indonesia, Malaysia, India etc and have EPS sample factories in Indonesia, India, Uzbekstan, Turkey, Malta, Bulgaria, Russia etc.

First 12 3 4 5 6 7 Last 1/10

EPS Shape Molding Machine is a cutting-edge technology that has revolutionized the production of Expanded Polystyrene (EPS) products in recent years. Our company takes pride in being one of the top manufacturers of EPS Shape Molding Machines, and we have a factory dedicated to producing these high-quality machines.

Our machines are designed to help manufacturers of EPS products to achieve unprecedented levels of productivity, while also maintaining the highest standards of quality and efficiency. With our EPS Shape Molding Machines, it is now possible to produce EPS products with precise dimensions, smooth surface finish, and excellent insulation properties.

At our factory, we utilize state-of-the-art technology and the expertise of our highly skilled engineers to manufacture EPS Shape Molding Machines of the highest quality. Our machines are constructed with durable and reliable materials, ensuring they are built to last.

We are committed to providing our customers with the best products and services in the industry. Our team is always willing to go above and beyond to ensure that our clients are satisfied with our products and services.

In conclusion, our EPS Shape Molding Machine is an excellent investment for manufacturers who want to improve the quality and productivity of their EPS production line. Our company is dedicated to providing the best products and services to our clients, and we are confident that you will be satisfied with our EPS Shape Molding Machines.

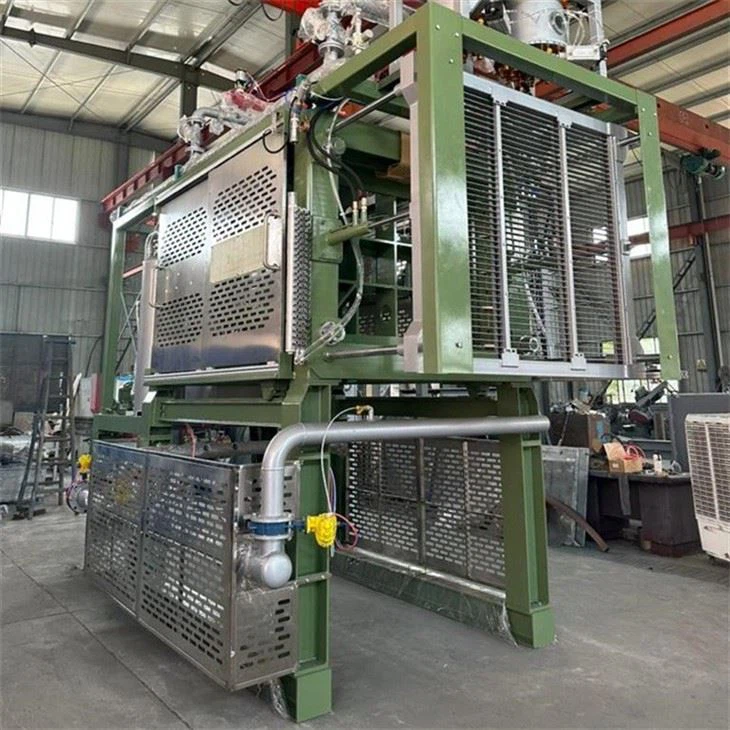

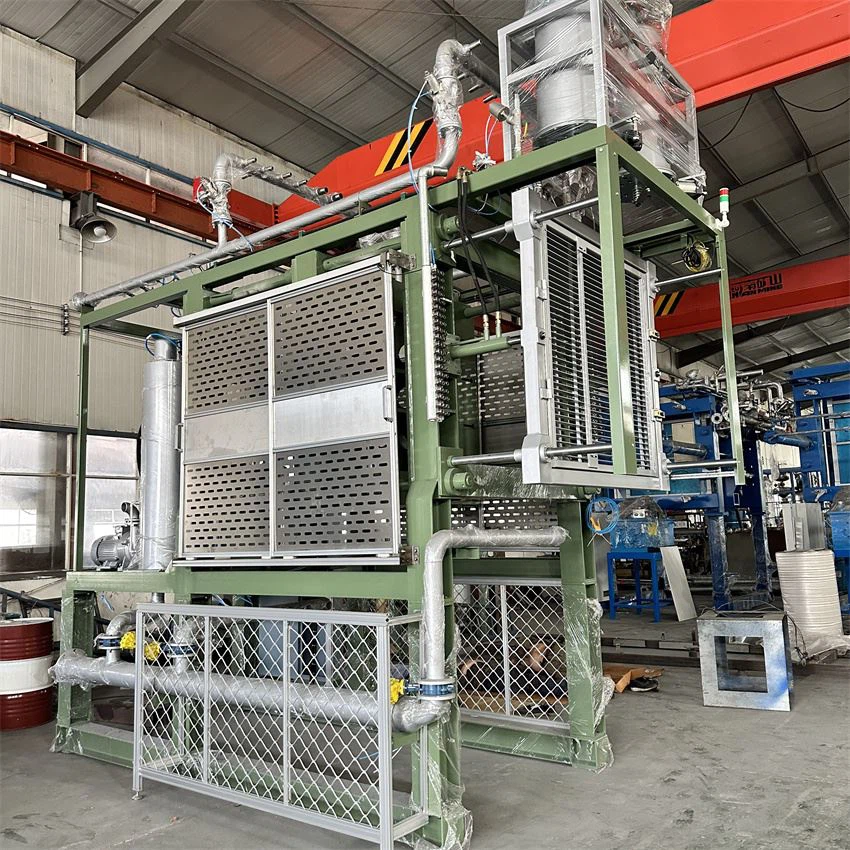

Eps Vacuum Casting Machine For Floor Heating Panel

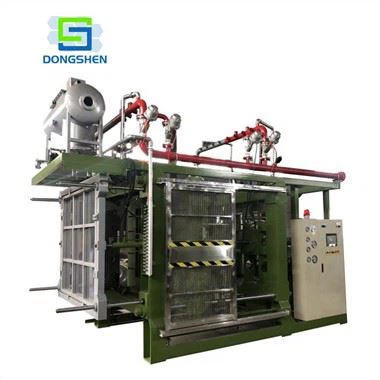

What is an EPS Shape Molding Machine

An EPS Shape Molding Machine is a specialized piece of equipment designed to shape EPS beads into various forms. This process is crucial in creating products ranging from packaging materials, protective helmets, to decorative items and even parts of building structures. EPS Shape Molding Machine system adopts multiple heating method, adopts solid and shifting balance valve system, control instrument and control valve parts to complete the cycle, thus making the machine more steam saving. The unstable factors of product quality caused by unstable steam source are solved and the quality is greatly improved.

The Benefits of EPS Shape Molding Machine

Good Energy-saving Characteristics
Using the main steam proportional pressure reducing valve technology, it can be precisely controlled, and the steam pressure delivered by the main pipeline is more stable.

Simple Structure
The design with stronger stability and better strength greatly improves the strength value of the machine, CNC center processing. On the one hand, high precision can be guaranteed, and on the other hand, the service life of the machine can be greatly extended.

Special Cooling System
This system is very important, mainly using high-efficiency vacuum system technology with low energy consumption. The large three-dimensional spray vacuum condenser is sprayed by the cooling water source to improve the vacuum condensation ratio, effectively protect the vacuum pump, and leave the intermediate vacuum interface in advance.
Simple Control
Mainly through the touch screen operation. The way of operation is simple. At the same time, it also has an alarm system, which can protect the operator more systematically.

Versatility
These machines can produce a wide range of shapes and sizes, allowing manufacturers to meet diverse customer demands. From intricate designs to simple forms, EPS Shape Moulding Machines can accommodate various requirements. This versatility opens up a world of possibilities for industries such as automotive, furniture, and electronics, where unique and customized products are in high demand.

Productivity
These machines are designed to optimize production processes, ensuring that manufacturers can meet tight deadlines and high-volume orders. With their advanced automation features, EPS Shape Moulding Machines can streamline the manufacturing process, reducing labor costs and increasing overall efficiency. This makes them an excellent investment for businesses looking to enhance their productivity and meet market demands effectively.

Product Component

Machine Structure
High-strength frame: The further enhanced back frame and moving frame, the whole polystyrene machine adopts the body and foot, and makes the frame and machine feet integrated, This greatly increases the frames strength and sturdiness of the polystyrene machine.

The polystyrene machine are treated with zinc spraying after the manufacturing works which improves load life of the expandable polystyrene packing machine.

The expandable polystyrene packing machine with vacuum adopts opposite directions type tie bar for easy maintenance and wear resistance. The self-lubricating copper tube solves original tie bar bushing's problem and improves the lubrication effectiveness of the polystyrene machine.

The preventing plate and back mould plate of the polystyrene machine with vacuum are all stainless steel, which reduces the wear and rust of the mold precision.

Hydraulic Pressure System
Hydraulic cylinders for the machine frame movement have safety locking of the mold during the steaming process and avoids the leakage of steam of the expandable polystyrene packing machine.

Special hydraulic pressure design: the ejecting cylinder and de-mold cylinder can be running simultaneously, which senses the de-mold gas blowing and product ejection synchronization effectively, reducing running time and improves de-mold capability of the expandable polystyrene moulding machine.

Steam System
The expandable polystyrene moulding machine controls the steam pressure by balance valve and pressure sensor instead of electronic connector pressure gauge. The mold pressure of the expandable polystyrene moulding machine can be set by touch screen.

Piping System
For the complete inlet and outlet of water, air and steam, the big pipeline and vales which are very close to the mold, reducing the excess energy consumption, while improving running speed of the expandable polystyrene moulding machine.

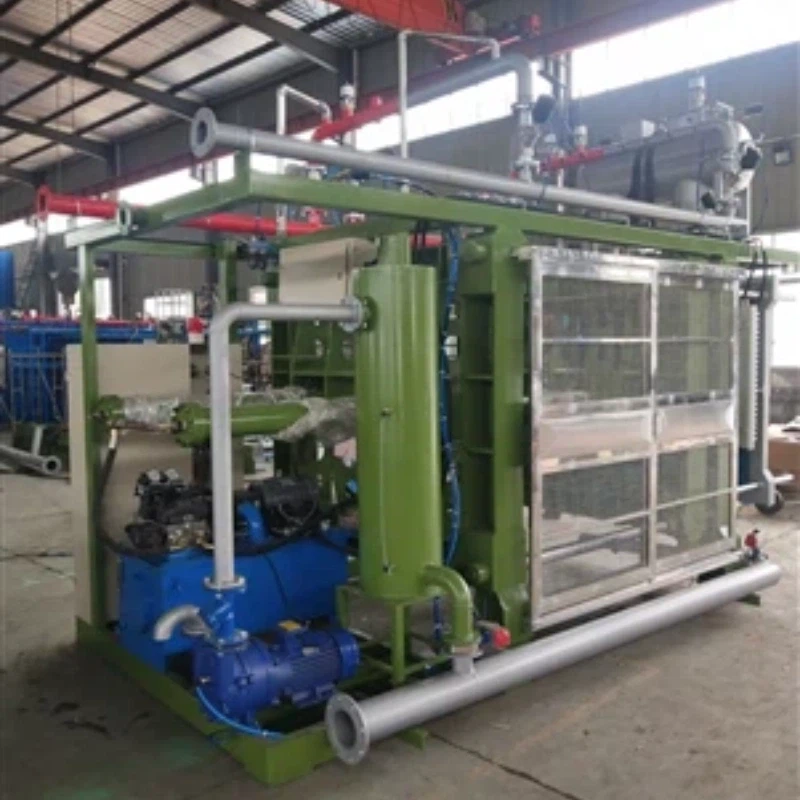

Vacuum System
The EPS automatic moulding machine adopts vertical vacuum system, with 4-6” large drain pipeline and long length of condensation drainpipe. The vacuum tank is equipped with a big spraying system, which sprays the rising hot steam directly, and increases condensation rate. Thus, improving vacuum suction efficiency and achieves vacuum as main cooling instead of main water cooling(normally water cooling will be set only 8-12s). This enables the product of water percentage≤10%，In addition, the spray header of the polystyrene machine 's replacement and maintenance is very convenient.

Control System
All pressure adjustments of EPS polystyrene machine are remote controlled by the control box, such as cross steaming, Main steaming, Filling also adjusted in touch screen according to different foaming area. The program of the EPS shape moulding machine also has many self-protection and alarm systems.

The polystyrene machine adoptes remote control system for all control pressure parts, electrics parts, valves, gauges and hydraulic parts sourced from famous international brands with quality to ensure the polystyrene molding machine stable and smooth running.

Impact on Construction Projects

EPS Shape Molding Machines play a vital role in the construction process by efficiently and effectively shaping expanded polystyrene (EPS) foam into desired forms. This innovative technology has revolutionized construction projects, offering numerous benefits that enhance both the quality and efficiency of the construction process.
One of the significant impacts of EPS Shape Molding Machines is the ability to create lightweight and durable building materials. EPS foam, produced by these machines, possesses exceptional insulation properties, making it an ideal choice for construction projects. The lightweight nature of EPS foam reduces the overall weight of the structure, which not only saves construction costs but also minimizes the strain on the foundation. This makes EPS foam a perfect material for constructing energy-efficient buildings that ensure optimal thermal comfort while reducing energy consumption.
EPS Shape Molding Machines enable the production of intricate designs and shapes that were previously challenging to achieve. The versatility of these machines allows architects and designers to explore their creativity by incorporating unique and aesthetically pleasing elements into construction projects. From decorative moldings to complex architectural features, EPS foam can be easily molded into any desired shape, providing endless possibilities for innovative designs.
EPS foam produced by Shape Molding Machines offers excellent resistance to moisture, rot, and insects. This durability factor extends the lifespan of construction projects, ensuring their long-term sustainability. Moreover, EPS foam is resistant to molds and fungi, making it a safe and healthy choice for buildings.
The utilization of EPS Shape Molding Machines also contributes to the reduction of construction waste. By optimizing the foam production process, these machines minimize material wastage, leading to a more sustainable construction industry. The ability to produce accurate and precise shapes also reduces the need for additional finishing materials, further minimizing waste generation.

Operational Steps

Preheating and Boot Heating
Before operation, the EPS moulding machine requires preheating to ensure the mold is at the optimal temperature. This step involves heating the boot, which is crucial for the mold’s heating action. Proper preheating helps in achieving uniform heat distribution, essential for quality EPS product formation.

Clamping and Mold Adjustment
Clamping involves the reasonable adjustment of the opening and closing die stroke. This adjustment is beneficial for improving product demolding and feeding efficiency. Key components like the push rod and die seam, along with the slow opening gun, play a vital role in this stage.

Steam Injection and Preheating
Steam is injected into the solid transfer mold for further preheating. This step raises the mold’s temperature and strengthens the apparent fusion degree of the product, ensuring a solid and consistent EPS product.

Core Heating and Penetration
The core and internal fusing properties of the products are improved through thorough heating. This stage is critical for enhancing the product’s structural integrity, although it can lead to increased steam consumption.

Two-Way Heating
To further enhance the heating effect and improve the product’s surface quality, two-way heating is employed. This method ensures even heat distribution and a high-quality finish on the EPS product.

Return Temperature and Insulation
Utilizing residual heat, all valves are closed to maintain the mold’s temperature. This process benefits the surface fusion property of the product and saves energy, particularly steam.

Precooling
During precooling, the water cooling valve is opened, and the drain valve is closed. This stage speeds up product cooling, shortens the overall cooling time, and improves molding speed.

Water Cooling
Water cooling involves opening both the water cooling and drainage valves. The combined effect of water and air cooling ensures efficient temperature reduction of the EPS product.

Vacuum Cooling
Finally, vacuum cooling is implemented. The vacuum valve is opened, and the vacuum pump is activated to remove residual heat and water. This step also aids in demolding by creating a negative pressure inside the mold.

How to Choose the EPS Shape Molding Machines?

When choosing between automatic and semi-automatic EPS shape molding machines, consider factors such as production process, budget, molding cycle, production capacity, energy consumption, system requirements, working environment, and worker labor intensity.

Structure

Automatic EPS shape molding machine: This machine can complete the production process without the need for human intervention and can produce more products.
Semi-automatic EPS shape molding machine: This machine requires manual control of heating and cooling, and the molding cycle is relatively longer than that of an automatic EPS shape molding machine, but the surface of the finished product is smoother and of higher quality.

Production Process

The production process of an automatic EPS shape molding machine is relatively complex and requires personnel who are relatively skilled to operate it. However, due to the fast production speed of this machine, a large number of products can be produced in a short period of time.
The production process of a semi-automatic EPS shape molding machine is relatively simple, only requiring the control of heating and cooling. Although the molding cycle is relatively longer than that of an automatic EPS shape molding machine, the surface of the finished product is smoother and of higher quality.

Budget

Automatic EPS shape molding machines are expensive, but due to their high production capacity and low energy consumption, production costs can be reduced.
Semi-automatic EPS shape molding machines are cheaper, but due to their low production capacity and high energy consumption, production costs are relatively higher.

Molding Cycle

Automatic EPS shape molding machines have a fast molding speed and can produce a large number of products in a short period of time.
Semi-automatic EPS shape molding machines have a longer molding cycle, but the surface of the finished product is smoother and of higher quality.

Production Capacity

Automatic EPS shape molding machines have high production capacity and can produce a large number of products in a short period of time.
Semi-automatic EPS shape molding machines have low production capacity and require more time to produce the same amount of products.

Energy Consumption

Automatic EPS shape molding machines have low energy consumption, which can reduce production costs. Automatic EPS shape molding machines have higher system requirements and need better hardware equipment to support production.
Semi-automatic EPS shape molding machines have high energy consumption, which makes production costs relatively higher. Semi-automatic EPS shape molding machines have lower system requirements and can use simpler hardware equipment.

Working Environment
Automatic EPS shape molding machines have higher requirements for the working environment and need a better working environment to ensure production efficiency and product quality.
Semi-automatic EPS shape molding machines have lower requirements for the working environment, but in a poor working environment, production efficiency and product quality may be affected.

Intensity of Worker Labor

The labor intensity of workers using automatic EPS shape molding machines is low and can reduce work pressure.
The labor intensity of workers using semi-automatic EPS shape molding machines is high and requires more physical strength and endurance to complete the production process.

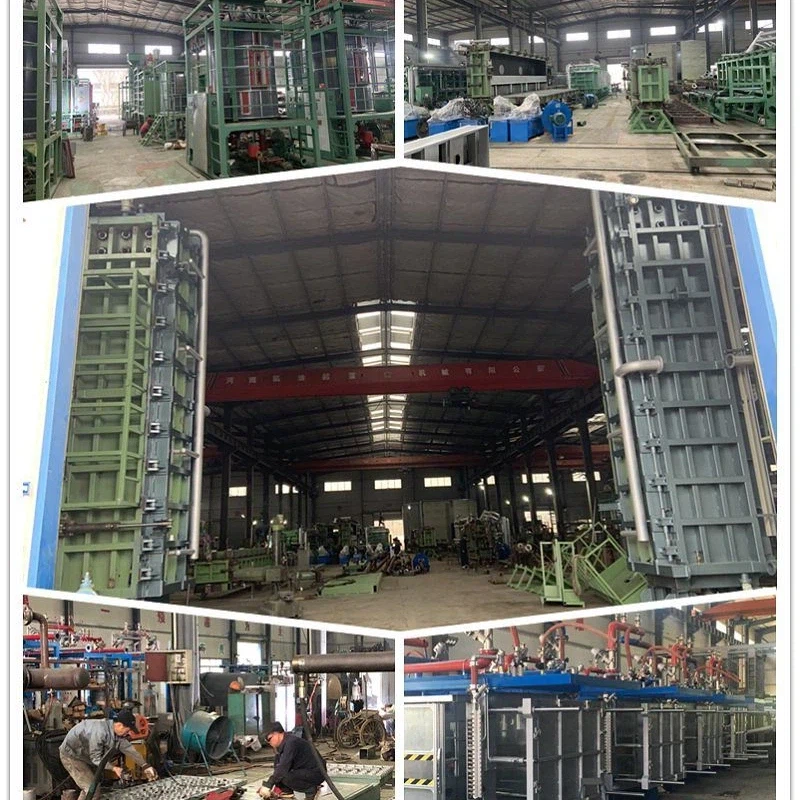

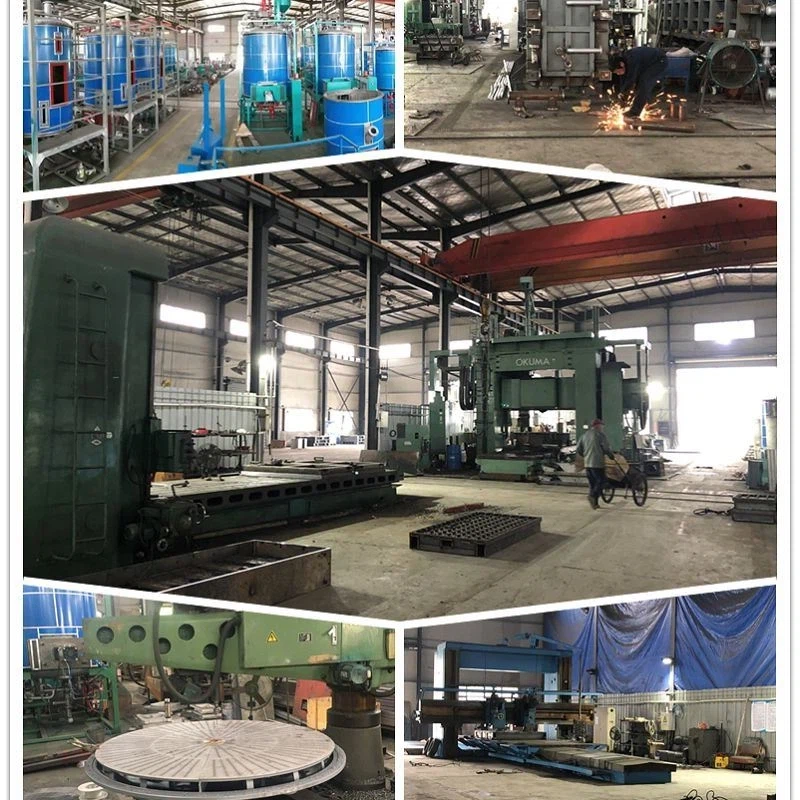

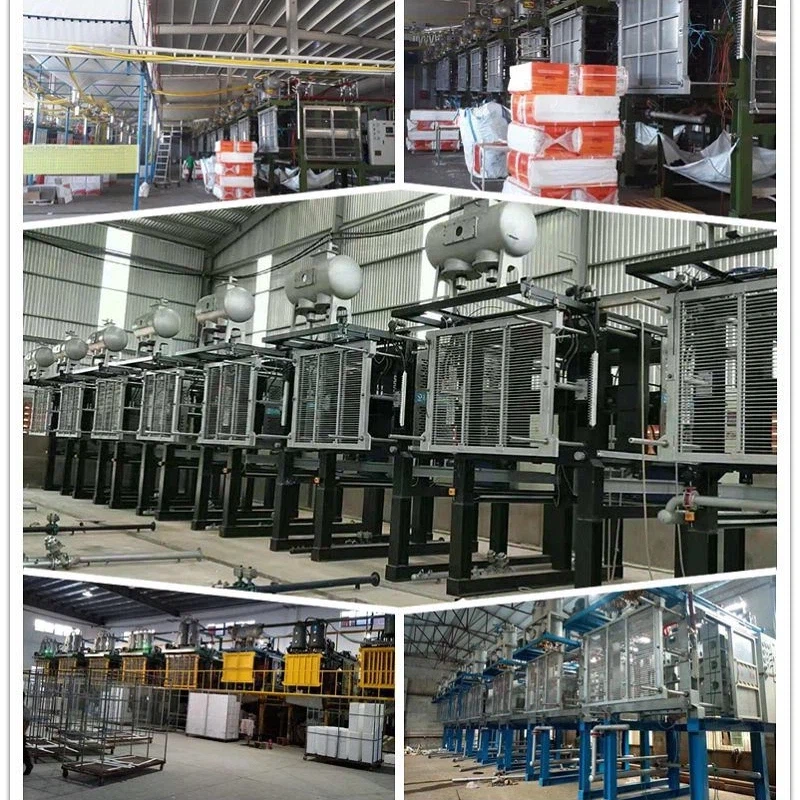

Our Factory

Below is our factories:

Ultimate Guide

Q: What is the working principle of shape molding machine?

A: The working principle of an shape molding machine is based on the "injection molding process". The process begins by melting plastic pellets in the hopper, which is then fed into the barrel of the shape molding machine by a screw. The screw then pushes the molten plastic into the mold cavity where it cools and solidifies into the desired shape.

Q: What is an EPS shape molding machine?

A: An EPS shape molding machine is a type of equipment used to produce expanded polystyrene (EPS) foam products with complex shapes, such as packaging inserts, insulation panels, and decorative items.

Q: What are the advantages of using EPS shape molding machines?

A: ●High production efficiency and speed
●Precise and consistent shaping of EPS foam products
●Versatility to produce a wide range of shapes and sizes
●Energy-efficient operation
●Cost-effective production process
●Reduced material waste

Q: What types of foam products can be produced with an EPS shape molding machine?

A: EPS shape molding machines can produce a wide range of foam products, including packaging inserts, insulation panels, architectural shapes, flotation devices, automotive parts, and more.

Q: What factors should be considered when choosing an EPS shape molding machine?

A: Factors to consider when choosing an EPS shape molding machine include the required production capacity, the size and complexity of the foam products to be produced, energy efficiency, automation features, machine size, maintenance requirements, and after-sales support.

Q: Can EPS shape molding machines produce foam products with different densities?

A: Yes, EPS shape molding machines can produce foam products with different densities by adjusting the machine parameters, such as steam pressure, temperature, and molding time. This allows for the production of foam products with varying insulation and mechanical properties.

Q: What are the main components of an EPS shape molding machine?

A: The main components of an EPS shape molding machine typically include a molding chamber, mold carrier, steam system, hydraulic system, control panel, and cooling system. These components work together to carry out the shape molding process.

Q: What are the maintenance requirements for an EPS shape molding machine?

A: Maintenance requirements for an EPS shape molding machine include regular cleaning, lubrication of moving parts, inspection of electrical components, calibration of sensors, timely replacement of worn parts, and adherence to manufacturer-recommended maintenance schedules.

Q: How does an EPS shape molding machine work?

A: Pre-expansion: EPS beads are pre-expanded using steam or hot air to increase their volume.
Aging: Pre-expanded beads are aged for a specific period to stabilize their size and shape.
Filling: The aged beads are then transferred to the mold cavity of the machine.
Molding: The mold is closed, and steam is injected into the mold to further expand the beads and shape them according to the mold design.
Cooling: After molding, the foam product is cooled to solidify and maintain its shape.
Demolding: The mold is opened, and the finished product is removed.

Q: Can EPS shape molding machines be customized for specific product requirements?

A: Yes, EPS shape molding machines can be customized to meet specific product requirements. This includes customization of mold cavities, mold design, and machine settings to produce foam products of various shapes, sizes, densities, and properties.

Q: Are there any safety considerations when operating an EPS shape molding machine?

A: Safety considerations when operating an EPS shape molding machine include wearing appropriate personal protective equipment, following machine operating instructions, ensuring proper ventilation, and conducting regular safety checks. It is important to prioritize operator safety during machine operation.

Q: How can foam density be controlled in EPS shape molding machines?

A: Foam density in EPS shape molding machines can be controlled by adjusting various parameters, such as the steam pressure, steam injection time, pre-expansion ratio, and mold temperature. These factors influence the expansion and fusion of the EPS beads, ultimately affecting the foam density of the final product.

Q: Can EPS shape molding machines produce both white and black foam products?

A: Yes, EPS shape molding machines can produce foam products in various colors, including white and black. The color of the foam is determined by the colorant added to the EPS beads during the manufacturing process.

Q: Can EPS shape molding machines be used to produce flame-retardant foam products?

A: Yes, EPS shape molding machines can produce flame-retardant foam products. Flame-retardant additives can be added to the EPS beads during the manufacturing process to enhance the fire resistance of the foam.

Q: What is the warranty period for EPS shape molding machines?

A: The warranty period for EPS shape molding machines can vary depending on the manufacturer and specific model. Typically, warranties range from one to two years. It's important to check with the manufacturer for the exact warranty terms and conditions.

Q: Are EPS shape molding machines environmentally friendly?

A: EPS shape molding machines can be considered environmentally friendly for several reasons:

EPS foam is recyclable, and many EPS shape molding machines can use recycled EPS beads as raw material.
EPS foam has excellent insulation properties, which can contribute to energy savings in buildings.
EPS foam is lightweight, reducing transportation energy requirements.
EPS foam is inert and does not release harmful gases or chemicals into the environment.
