High Quality Best Sale Automatic Batch Pre-Expander Series

High Quality Best Sale Automatic Batch Pre-Expander Series

EPS Batch Pre-expander is functioned to expand EPS raw material to required density. EPS Batch Pre-expander is a type of full automatic EPS machine, all steps are working automatically like EPS material filling, weighing, material conveying, steaming, stablizing, discharging, drying and expanded material conveying. EPS Batch Pre-expander completes with Screw Conveyor, Weighing System, Vacuum Conveyor, Expansion Chamber, and Fluidized bed Drier

To consistently enhance the management method by virtue of the rule of 'sincerely, fantastic religion and top quality are the base of business development', we extensively absorb the essence of associated goods internationally, and constantly acquire new merchandise to satisfy the needs of shoppers for EPS Expanding Machine, Expanded Polystyrene Foam Machine, EPS Making Machine. In order to achieve the strategic goals and various tasks of the enterprise, we need to focus our efforts, consistent direction and mutual collaboration. We have extensive exchanges and cooperation with all walks of life, so that technology and equipment always meet the needs of the rapidly changing market, and in the same industry in a leading position. We will comprehensively promote intelligent manufacturing and continuously improve the quality and effect of enterprise development.

Video



Product advantages

The EPS Batch Pre-expander Machine is often made up of a series of interconnected components, including a pre-expansion chamber, a steam generation system, a particle filter, and a drying system. The pre-expansion chamber is where the polystyrene beads are heated and expanded using steam, which is generated by the steam generation system.



The particle filter acts as a barrier, preventing any unwanted particles or debris from entering the pre-expansion chamber, which can affect the quality of the final product. Similarly, the drying system ensures that the polystyrene beads are dried thoroughly before leaving the machine.



The EPS Batch Pre-expander Machine is typically operated by a skilled technician who monitors the temperature and pressure levels within the machine to ensure that the foam produced is of high quality. The machine is capable of producing thousands of pounds of pre-expanded polystyrene beads each day, making it an essential component of any large-scale EPS manufacturing facility.



In summary, the EPS Batch Pre-expander Machine is a highly specialized piece of machinery that is designed to pre-expand polystyrene beads used in the manufacturing process of EPS foam products. This machine is an essential component of any EPS manufacturing facility and can produce thousands of pounds of pre-expanded beads each day, thanks to its innovative design and interconnected systems.

Important parameters

FDS1100, FDS1400, FDS1660 EPS Batch Preexpander

Item

Unit

FDS1100

FDS1400

FDS1660

Expansion Chamber

Diameter

mm

Φ1100

Φ1400

Φ1660

Volume

1.4

2.1

4.8

Usable volume

1.0

1.5

3.5

Steam

Entry

Inch

2''(DN50)

2''(DN50)

2''(DN50)

Consumption

Kg/cycle

6-8

8-10

11-18

Pressure

Mpa

0.6-0.8

0.4-0.8

0.4-0.8

Compressed Air

Entry

Inch

DN50

DN50

DN50

Consumption

m³/cycle

0.9-1.1

0.5-0.8

0.7-1.1

Pressure

Mpa

0.5-0.8

0.5-0.8

0.5-0.8

Drainage

Upper Drain Port

Inch

DN100

DN125

DN150

Under Drain Port

Inch

DN100

DN100

DN125

Under Discharge Port

Inch

DN80

DN80

DN100

Throughput



4g/1 230g/h

4g/1 360g/h

10g/1 320g/h

7g/1 350g/h

7g/1 480g/h

15g/1 550g/h

9g/1 450g/h

9g/1 560g/h

20g/1 750g/h

15g/1 750g/h

15g/1 900g/h

30g/1 850g/h

20g/1 820g/h

20g/1 1100g/h

Material Conveying Line

Inch

6''(DN150)

8''(DN200)

8''(DN200)

Power

Kw

19

22.5

24.5

Density

Kg/m³

10-40

4-40

4-40

Density Tolerance

%

±3

±3

±3

Overall Dimension

L*W*H

mm

2900*4500*5900

6500*4500*4500

9000*3500*5500

Weight

Kg

3200

4500

4800

Room Height Required

mm

5000

5500

7000

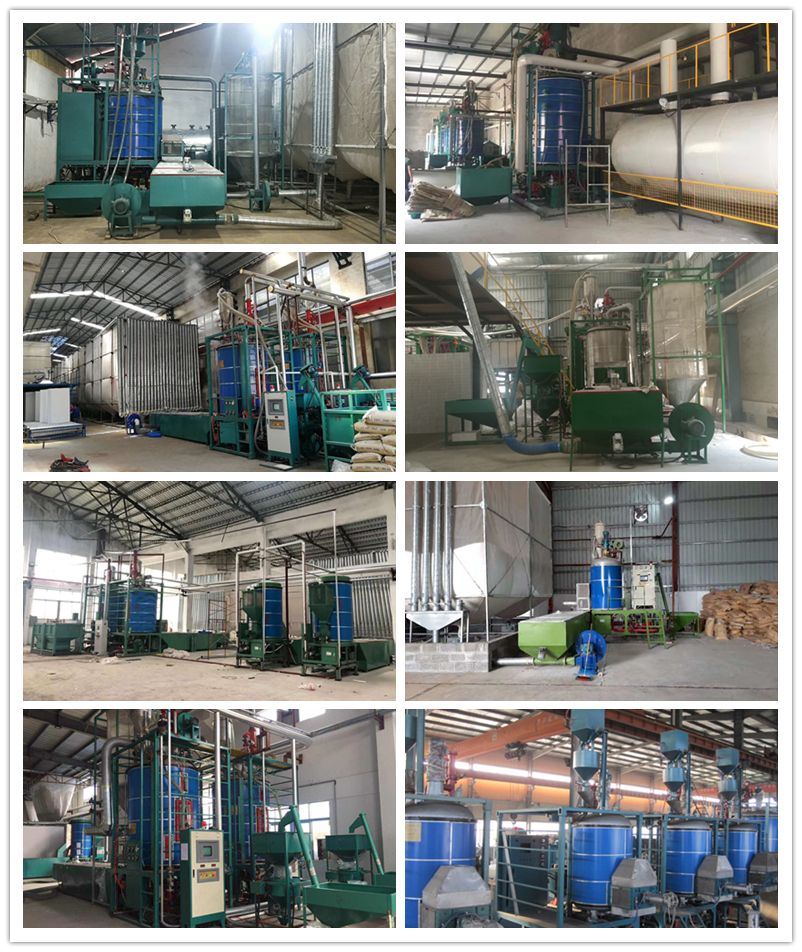

EPS Batch Pre-Expander Machine

EPS Batch Pre-Expander Machine

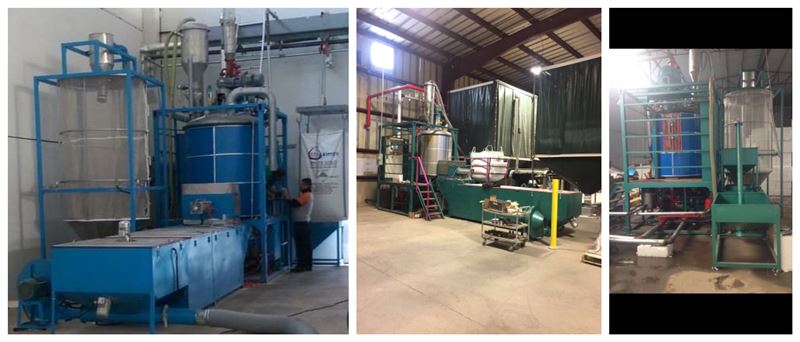

EPS Batch Pre-Expander Machine



EPS Batch Pre-Expander Machine

EPS Batch Pre-Expander Machine

EPS Batch Pre-Expander Machine



EPS Batch Pre-Expander Machine packaging

EPS Batch Pre-Expander Machine
