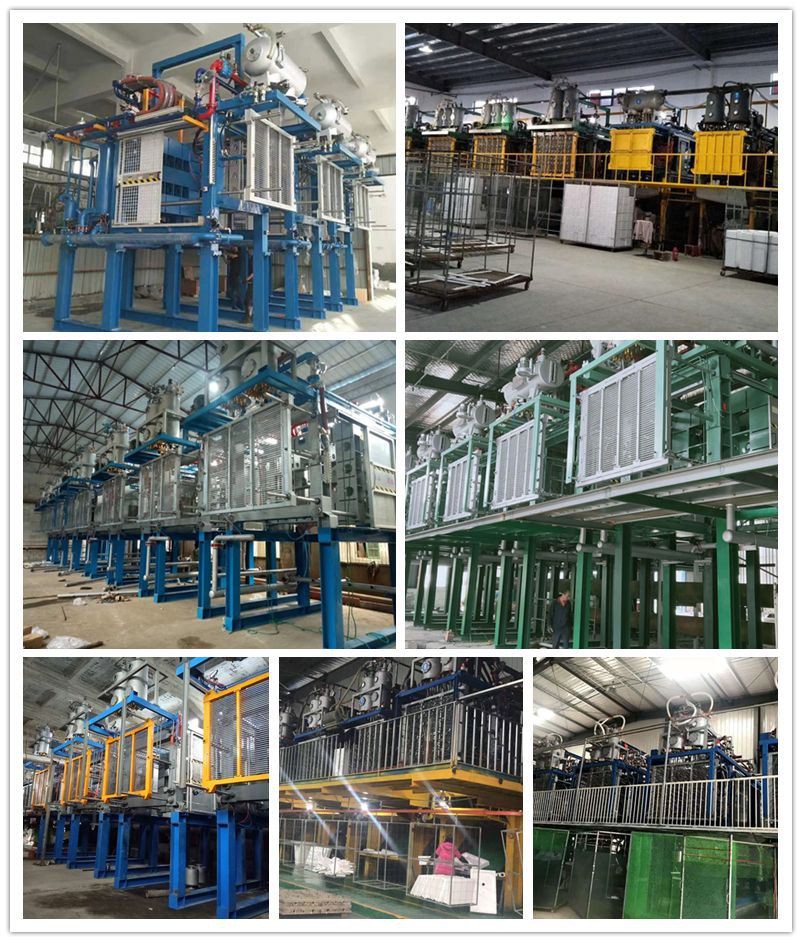

EPS Shape Moulding Machine For ICF Insulated
EPS Shape Moulding Machine for ICF Insulated is used together with mould to produce packaging products like electrical packing, vegetable and fruit boxes, seedling trays etc. and construction products like brick insert and ICF etc. With different moulds, the machine can produce different shape.
EPS Shape Moulding Machine for ICF Insulated completes with PLC, touch screen, material hopper, efficient vacuum system, lifting legs
EPS Shape Moulding Machine For ICF Insulated Concrete Forms is a state-of-the-art machine that is specifically designed to produce high-quality Insulated Concrete Forms (ICF) that are used in the building industry. ICFs are a type of building material that provides superior insulation and structural strength, making them an ideal choice for modern construction.
The machine utilizes Expanded Polystyrene (EPS) as the primary material to produce ICFs. The EPS is first fed into the machine, where it is heated and melted to form a molten mass. The molten mass is then injected into a mould, where it solidifies and takes the shape of the ICF.
The EPS Shape Moulding Machine For ICF Insulated is highly automated and requires minimal human intervention, making it highly efficient and cost-effective. It is capable of producing a wide range of ICFs, including blocks, panels, and custom shapes.
The EPS Shape Moulding Machine For ICF Insulated comes equipped with advanced software and control systems, allowing for precise and accurate moulding. It also features a fast cooling system, which reduces the production time and increases the overall output of the machine.
The EPS Shape Moulding Machine For ICF Insulated ConcreteForms is built to the highest standards of quality and durability, ensuring long-term reliability and low maintenance costs. It is an essential piece of equipment for any modern construction company that is looking to stay ahead of the game in terms of speed, efficiency, and quality.
EPS Shape Moulding Machine For ICF Insulated Specifications
1. This machine adopts PLC and touch screen, advanced molding technology, and can produce EPS products of various shapes.
2. This EPS Shape Moulding Machine For ICF Insulated can produce different kinds of foamed products with low moisture, high foaming speed and low energy consumption.
3. There are four operating modes: automatic, semi-automatic, pause-start, and manual, with safety protection devices to ensure safe operation.
4. The EPS Shape Moulding Machine For ICF Insulated adopts microcomputer control and touch screen display. It can run efficiently under computer control and management with a high degree of automation. The operation is simple, the maintenance is convenient, and the labor intensity can be reduced.
5. This machine adopts an advanced electro-hydraulic integrated system, which improves the forming speed, significantly reduces energy consumption, and reduces environmental pollution.
6. Mechanical demoulding method.
|
Item |
Unit |
FAV1200 |
FAV1400 |
FAV1600 |
FAV1750 |
|
|
Mould Dimension |
mm |
1200*1000 |
1400*1200 |
1600*1350 |
1750*1450 |
|
|
Max Product Dimension |
mm |
1000*800*400 |
1200*1000*400 |
1400*1150*400 |
1550*1250*400 |
|
|
Stroke |
mm |
150~1500 |
150~1500 |
150~1500 |
150~1500 |
|
|
Steam |
Entry |
Inch |
3''(DN80) |
4''(DN100) |
4''(DN100) |
4''(DN100) |
|
Consumption |
Kg/cycle |
5~7 |
6~9 |
7~11 |
8~12 |
|
|
Pressure |
Mpa |
0.5~0.7 |
0.5~0.7 |
0.5~0.7 |
0.5~0.7 |
|
|
Cooling Water |
Entry |
Inch |
2.5''(DN65) |
3''(DN80) |
3''(DN80) |
3''(DN80) |
|
Consumption |
Kg/cycle |
45~130 |
50~150 |
55~170 |
55~180 |
|
|
Pressure |
Mpa |
0.3~0.5 |
0.3~0.5 |
0.3~0.5 |
0.3~0.5 |
|
|
Compressed Air |
Entry |
Inch |
1.5''(DN40) |
2''(DN50) |
2''(DN50) |
2''(DN50) |
|
Consumption |
m³/cycle |
1.5 |
1.8 |
1.9 |
2 |
|
|
Pressure |
Mpa |
0.5~0.7 |
0.5~0.7 |
0.5~0.7 |
0.5~0.7 |
|
|
Capacity15kg/m³ |
s |
60~120 |
70~140 |
70~150 |
80~150 |
|
|
Connect Load/Power |
Kw |
9 |
12.5 |
16.5 |
16.5 |
|
|
Overall Dimension(L*W*H) |
mm |
4700*2000*4660 |
4700*2250*4660 |
4800*2530*4690 |
5080*2880*4790 |
|
|
Weight |
Kg |
5000 |
5500 |
6000 |
6500 |
|
EPS pre-expander
1. Fully automatic continuous production.
2. Touch screen and PLC control, easy to operate.
3. High output and energy saving.
4. Stable quality, less.
EPS molding machine
1. PLC and touch screen control, easy to operate.
2. The vacuum system enables the product to be formed and cooled quickly, while reducing the water content.
3. With a variety of demoulding devices, it can handle any products that are difficult to demould.
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. Other payment terms can also be negotiated.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
