Cnc Eps Cutting Machine

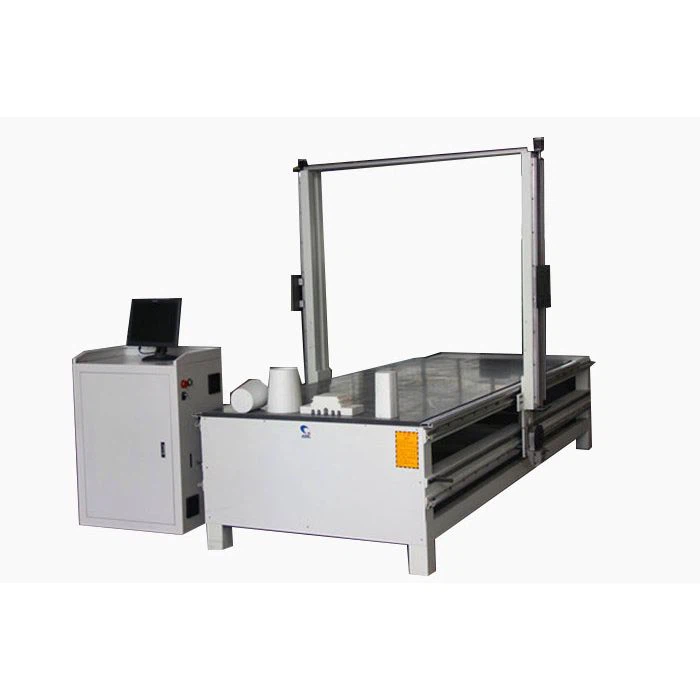

The machine typically consists of a cutting table, gantry, control panel, and wire tensioning system. The cutting table is where the EPS foam is placed and secured for cutting. The gantry is the part of the machine that moves along the X, Y, and Z axes to position the cutting wire. The control panel allows the operator to input the cutting specifications and control the machine's movements. The wire tensioning system is responsible for keeping the cutting wire taut and in place during operation.

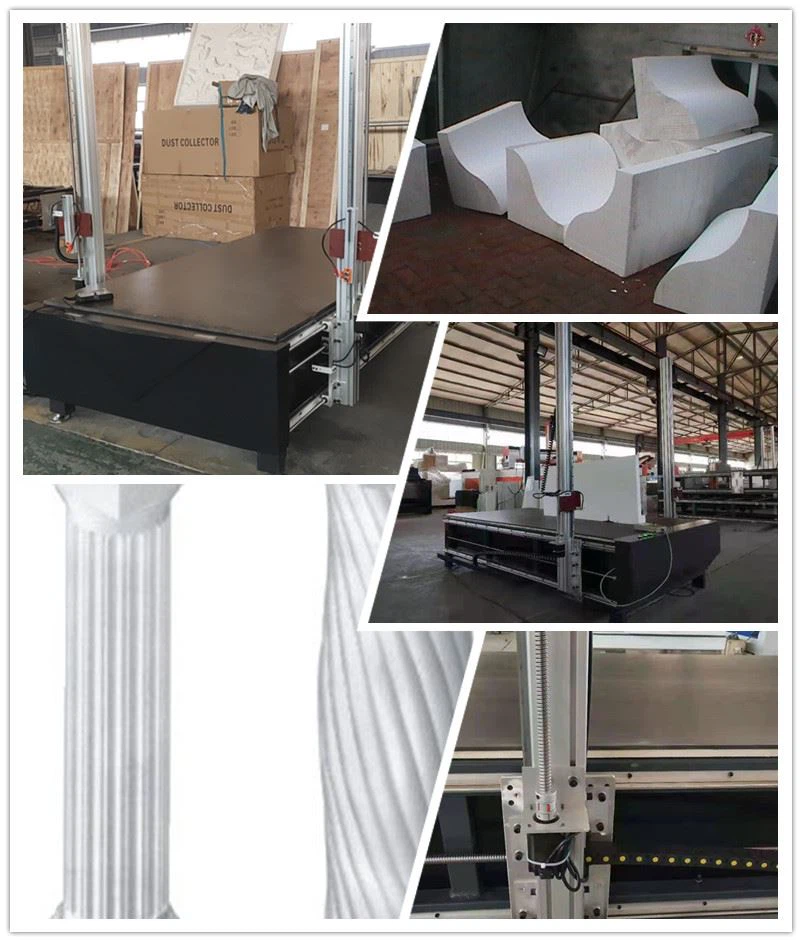

The CNC EPS cutting machine is widely used in the construction industry to create architectural shapes, insulation, and decorative elements. It is also used in the packaging industry to create custom foam inserts for sensitive products. The machine can cut through a wide range of foam densities and thicknesses, making it a versatile tool for many applications.
The CNC EPS cutting machine is an advanced piece of equipment used in the manufacturing industry. It is designed to cut large pieces of Expanded Polystyrene (EPS) foam into various shapes and sizes according to precise specifications.
The Cnc Eps Cutting Machine uses computer numerical control (CNC) technology to control the movement of the cutting wire. This allows for high precision cuts and reduces the risk of human error. The cutting wire is heated using electricity to reach a temperature high enough to cut through the EPS foam smoothly.
The Cnc Eps Cutting Machine typically consists of a cutting table, gantry, control panel, and wire tensioning system. The cutting table is where the EPS foam is placed and secured for cutting. The gantry is the part of the machine that moves along the X, Y, and Z axes to position the cutting wire. The control panel allows the operator to input the cutting specifications and control the machine's movements. The wire tensioning system is responsible for keeping the cutting wire taut and in place during operation.
The CNC EPS cutting machine is widely used in the construction industry to create architectural shapes, insulation, and decorative elements. It is also used in the packaging industry to create custom foam inserts for sensitive products. The machine can cut through a wide range of foam densities and thicknesses, making it a versatile tool for many applications.
Overall, the CNC EPS cutting machine is a reliable and efficient tool that enhances the manufacturing process by providing high-quality, precise cuts. Its use promotes accuracy, consistency, and ultimately, cost savings.
|
Model |
DTC-E2012 |
DTC-3012 |
DTC-3030 |
|
Max. Product Size |
L2000*W1300*H1000mm |
L3000*W1300*1300mm |
L3000*W3000*H1300mm |
|
Cutting line diameter |
0.8~1.2mm |
0.8~1.2mm |
0.8~1.2mm |
|
Cutting Speed |
0~2m/min |
0~2m/min |
0~2m/min |
|
Cutting System |
Industrial Computer |
Industrial Computer |
Industrial Computer |
|
Computer Operation System |
Windows XP/Win7 |
Windows XP/Win7 |
Windows XP/Win7 |
|
Cooling System |
Air blower |
Air blower |
Air blower |
|
Acceptable File Formats |
DXF/DWG |
DXF/DWG |
DXF/DWG |
|
X-Axis Motor |
Servo Motor |
Servo Motor |
Servo Motor |
|
Y-Axis Motor |
Stepper Motor |
Stepper Motor |
Stepper Motor |
|
Number of Cutting Wire |
up to 20 |
up to 20 |
up to 20 |
|
Total Power |
13.5kw, 380V, 50Hz, 3PH |
13.5kw, 380V, 50Hz, 3PH |
13.5kw, 380V, 50Hz, 3PH |
|
Gross Weight |
1200kg |
1500kg |
2000kg |
